    EK-3010 Cold Storage Parts , Digital Temperature Controller Quick Response

    Ask Lasest Price
    Brand Name : Elitech
    Model Number : EK-3010
    Price : negotiable
    • Product Details
    • Company Profile

    EK-3010 Cold Storage Parts , Digital Temperature Controller Quick Response

    EK-3010 Digital Temperature Controller

    ModelBrandVoltagePlace of origin
    EK-3010Elitech220vMade in china
    Product Description

    Features
    1. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
    2. One way sensor input: cabinet temperature sensor, one way control output: Refrigeration (or heating equipment output).
    3. Six touch key design, quick parameter setting, easy operation.
    4. It could measure, display and control temperature, with the function of temperature calibration, and temperature over temperature alarm and sensor failure alarm.
    5. one key recovery of the factory default value, support parameters preset
    6. It adopts touch key design wit the key lock function
    Product functions comparison
    Ek3010
    cooling(or heating) :Yes Defrost :No Fan:No Alarm: Yes Probe: 1
    Ek3020
    cooling(or heating) :Yes Defrost :Yes Fan:No Alarm: Yes Probe: 1
    Ek3021
    cooling(or heating) :Yes Defrost :Yes Fan:No Alarm: Ye Probe: 2
    Ek3030
    cooling(or heating) :Yes Defrost :Yes Fan:Yes Alarm: Yes Probe: 2
    Specifications:
    1) Measuring range:-40℃~99℃
    2) Controlling range:-40℃~85℃
    3) Accuracy:-30℃~50℃,±1℃±0.5dig; others, ±2℃±0.5dig
    4) Resolution:0.1℃ / 1℃
    5) Mounting size: 71mm*29mm
    6) Power supply: 220±10%(VAC), 50/60Hz
    7) Power consumption:5W
    8) Output capacity:
    Refrigeration:10A/220VAC or 16A/220VAC, directly drive a single phase compressor 1HP
    One way buzzer alarm output
    9) Work ambient temperature: -5℃~60℃;work ambient humidity:10%~90% non condensing
    10) Storage temperature:-25℃~75℃

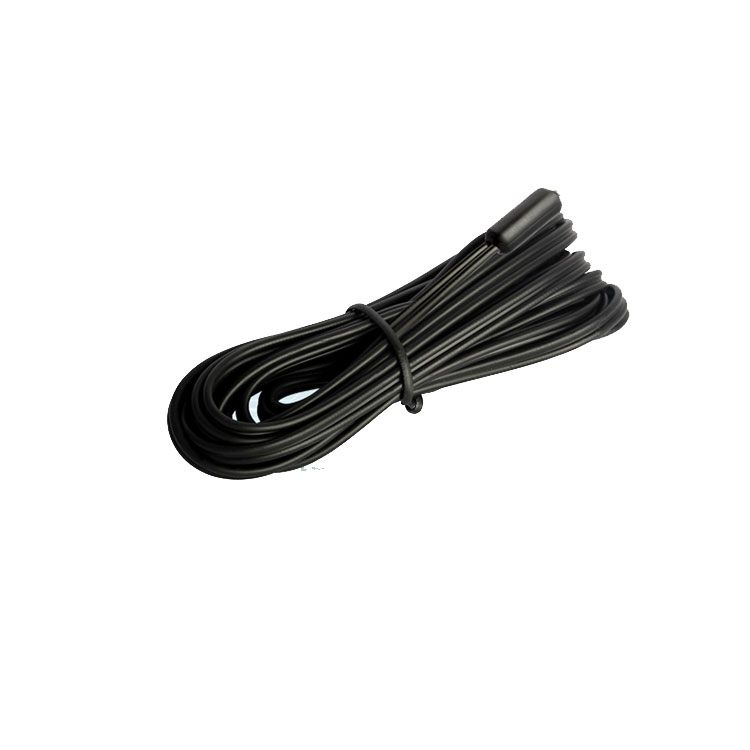

    11) Senor type: NTC(10KΩ/25℃,B value 3435K)
    12) Sensor length: 2M
