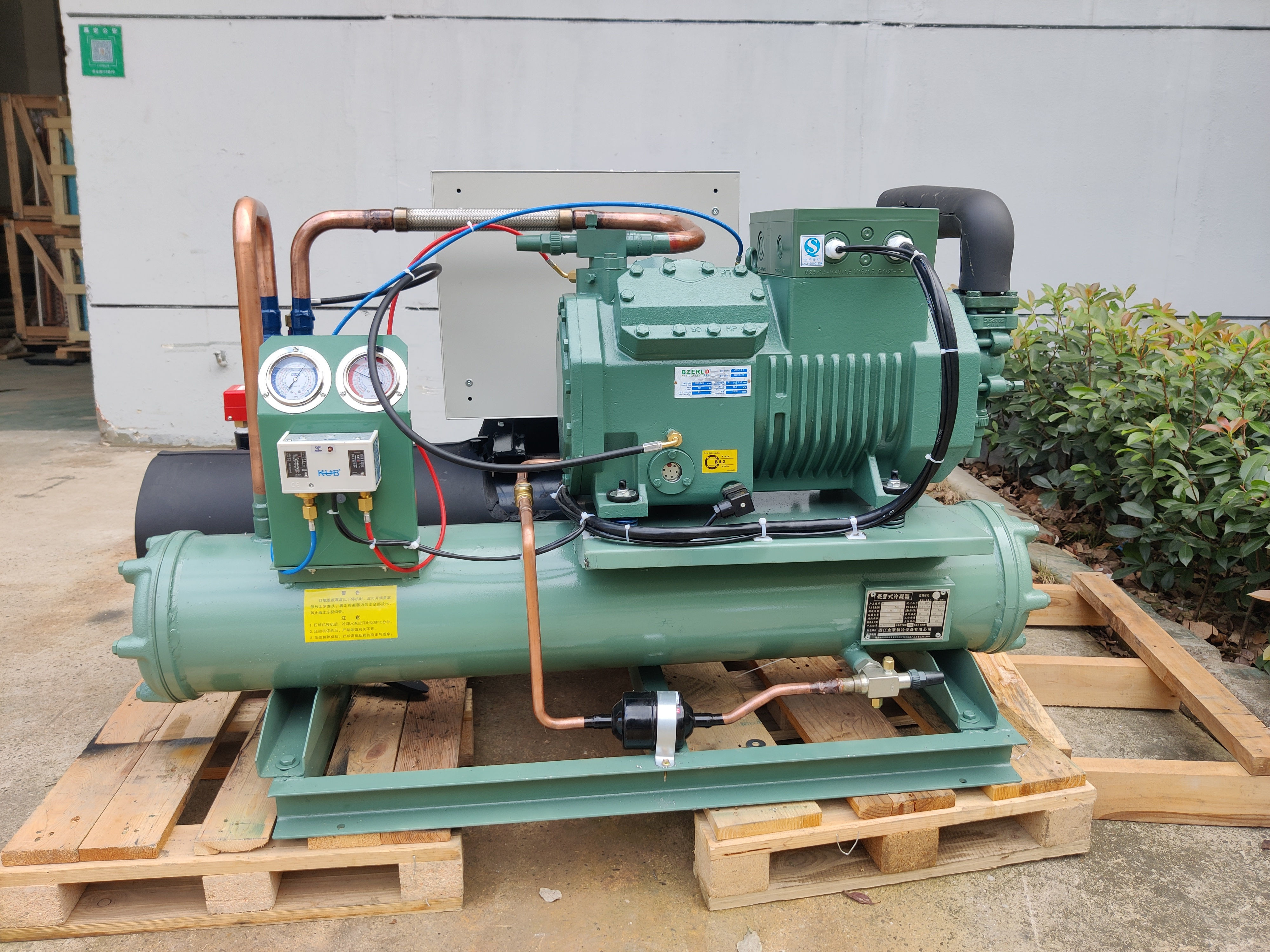

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment

    Ask Lasest Price
    Brand Name : KUB
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Year
    Delivery Time : 7
    • Product Details
    • Company Profile

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment

    4YG15.2 380V 50HZ Customized cold water refrigeration equipment Water cooled condenser equipment

    Water cooled condenser equipment description

    Water-cooled condenser equipment is a cooling system that is commonly used in heating, ventilation, and air conditioning systems for large commercial and industrial buildings. It is designed to remove heat from the refrigerant in the HVAC system and transfer it to a water source, such as a cooling tower or a body of water.

    1. Refrigerant Compatibility: Water-cooled condenser equipment can be designed to work with a variety of refrigerants, including R-22, R-134a, and R-410a. The equipment should be selected based on the specific refrigerant used in the HVAC system.

    2. Capacity: Water-cooled condenser equipment is available in a range of sizes and capacities to suit different applications. The capacity of the equipment should be selected based on the size of the building and the cooling load requirements.

    Individual compressor parameters


    Compressor Model4YD-8. 24YG-12.24YD-10.24YG-15.24YD-12.24YG-20. 2
    Nominal power HP/KW8/5.512/8.810/7.515/10.512/8.820/15
    Displacement m³/h 50Hz41.341.348.548.556.256.2
    Number of cylinders×diameter×stroke4×ф60×424×ф60×424×ф65×424×ф65×424×ф70×424×ф70×42
    Suction and exhaust valve connectionmm/INDLф28ф28ф28ф28ф28ф28
    SLф35ф35ф35ф35ф35ф42
    Oil injection volume L2.62.62.62.62.62.6
    Power supply V/ф/Hz380/420 YY/3/50 440-480 YY/3/60
    Electrical parametersMaximum working current(A)172421312437
    Starting/stall current (A)49/8169/11359/9981/13269/11397/158
    crankcase heater(220V)W120140140140140140
    Fuel supply method离心润滑
    Weight (including refrigeration oil)Kg134141139147141150

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment

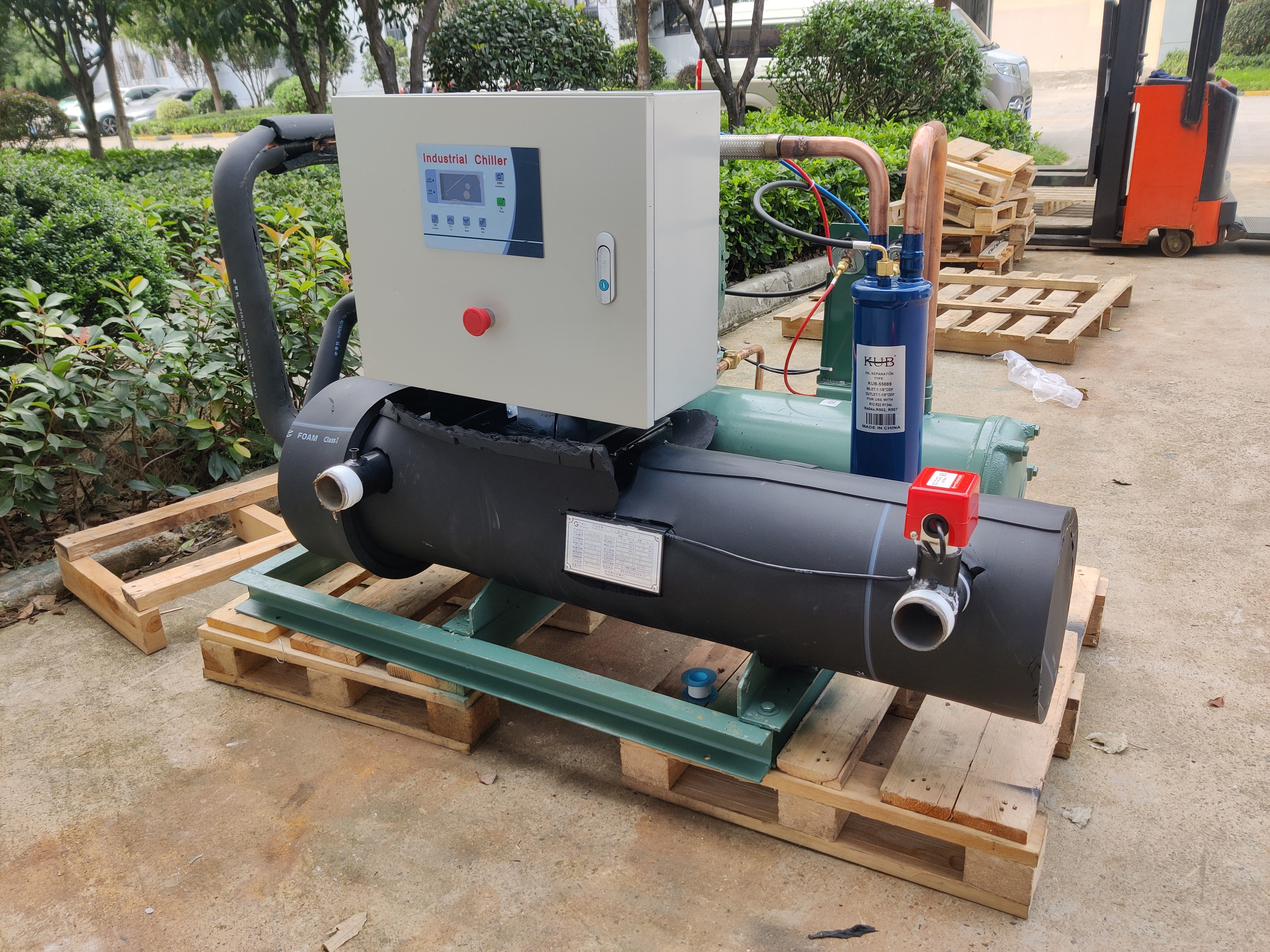

    4,Semi-hermetic water-cooled chiller
    The following calibration conditions:chilled water inlet temperature 12 ° C, outlet water temperature 7 ° C,
    cooling water inlet water temperature 30 ° C, outlet water temperature 35 ° C;
    ModelLSB-
    15WH20WH25WH30WH50WH35WH40WH50WH
    Cooling CapacityKW46.854.268.979.1139.8103.5118.6139.8
    Power supply3P-380V-50Hz
    Machine PowerKW10.2912.6315.8218.6835.223.72835.2
    Machine currentA1821.927.232.566.941.850.366.9
    CompressortypeSemi-hermetic piston compressor
    Input powerKWshell and tube high efficiency heat exchanger
    CondensortypeDN50DN65
    Input powerKW9.811.514.616.830.121.925.230.1
    EvaporatortypeDry shell and tube y heat exchanger
    Water ConnectionsDN50DN65
    Rated flowm³/h8.09.311.913.624.017.820.424.0
    RefrigerantR22
    DimensionLmm16001900190019002300215021502300
    Wmm8509009009001100100010001100
    Hmm10501100110011001300120012001300
    The following calibration conditions: ethylene glycol inlet temperature -11°C, outlet water temperature -15°C, cooling water inlet temperature 30°C;
    ModelLSB-
    15WL20WL25WL30WL40WL
    Cooling CapacityKW23.026.534.539.847.5
    Power supply3P-380V-50Hz
    Machine PowerKW11.213.116.821.924.3
    Machine currentA19.222.528.637.145.5
    CompressortypeSemi-hermetic piston compressor
    Input powerKWHorizontal shell and tube heat exchanger
    CondensortypeDN50DN65
    Input powerKW5.96.88.812.812.3
    EvaporatortypeDry shell and tube heat exchanger
    Water ConnectionsDN50DN65
    Rated flowm³/h5.86.68.713.211.9
    RefrigerantR22
    DimensionLmm16001900190019002150
    Wmm8509009009001000
    Hmm10501100110011001200

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment


    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment

    4YG15.2 380V 50HZ Customized Cold Water Refrigeration Equipment Water Cooled Condenser Equipment
