STC1000X Cold Storage Parts 220V Heating Cooling Temperature Controller

Ask Lasest Price
Brand Name :	Elitech
Model Number :	STC1000X
Certification :	CE
Price :	Consult
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Year
Delivery Time :	20days

Add to Cart

Product Details
Company Profile

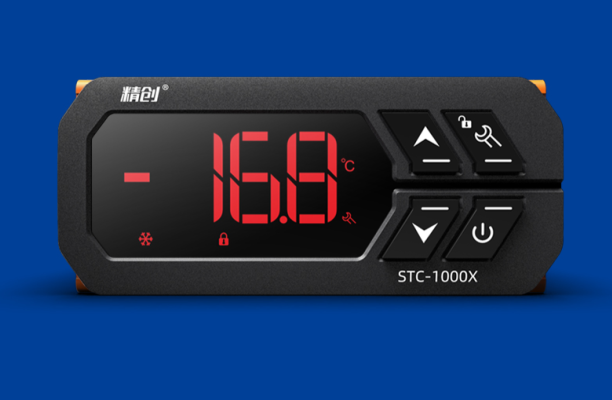

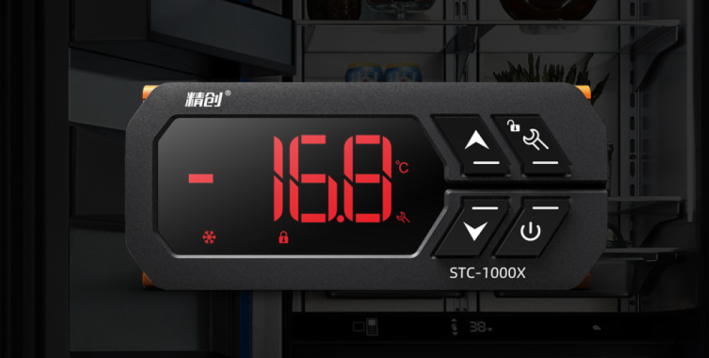

STC1000X Cold Storage Parts 220V Heating Cooling Temperature Controller

STC1000X pid 220V Heating and Cooling Digital Temperature Controller

Product Description

Description:
This mini Temperature Controller is an excellent and convenient multifunction device for controlling temperature in Aquariums. The stability of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish. By utilizing the temperature controller, you can provide an environment with optimal temperature for your fish. This advanced temperature controller can measure and control temperature from -50 to 90 °C.
This device is also suitable for Laboratories use and other temperature-controlled systems.

NOTE: Unless required, we will ship the temperature controller with 220 V or 110 V versions based on the voltage of your countries. For example, if you are customers fromUnited States, Canada, Mexico, Japan and Taiwan, we will ship 110 V versions. For customers from Europe, Australia, New Zealand, most Asian Countries, South America and Africa, we will ship 220 V versions.

Features:
Mini and light weight design
Large and clear LCD display
Wide Temperature Range (-50 ~ 90 °C)
Dual heating and cooling function
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Temperature Calibration
Refrigerating control output delay protection
Wiring diagram for installation included

Specifications:
Color:Black
Applications:Aquarium, Terrarium, Vivarium, Paludarium ,Chicken Incubator
Temperature Measuring Range: -50 ~ 90 °C
Control temperature range: -50 ~ 90 °C (adjustable)
Control temperature difference: 0.3 - 10 °C (adjustable)
Resolution: 0.1 °C
Accuracy: ± 1 °C (-50 ~ 70 °C)
Sensor: NTC sensor
Sensor error delay: 1 minute
Relay contact capacity (Heating): 10A (max) 250 V
Relay contact capacity (Cooling): 10 A (max) 250 V
Compressor delay protection time: 1 ~ 10 minutes (adjustable)
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -30 ~ 75 °C
Operating Relative Humidity: 20 ~ 85 % (No condensation)
Alarm Output : Buzzer
Power Supply: 110~ 220V AC ± 10% , 50 / 60 Hz
Power consumption: < 3 W
Cable length: 1 M
Item dimensions: approx. 84*69*34 MM
Net weight:240g
Weight:300g

Package includes:
1 x Mini-Temperature Controller(with cable)

STC-1000X Ingenuity Upgrade

High precision sensor
The high-precision chip that can withstand 3000 high and low temperature shocks has small drift and more stable performance.

Automatic switching between cooling and heating
The hysteresis temperature control mode is safer to use

Compressor delay protection
Compressor delay working 0-10 minutes adjustable
Ensure compressor safety

Sensor failure alarm
Temperature probe failure, open circuit failure
The buzzer sounds and the alarm code EE is displayed

Product Parameters

Power	220V±10%, 50/60HZ; 24VAC/DC; 12VAC/DC
Measuring range	-50°C-l 20°C/-55°F-248°F
Temperature Resolution	0.1 ℃
Temperature measurement accuracy	±1°C (-20°C~50°C)/±2°F ±1.5°C/±3°F (others)
Machine power consumption	<3W
Operating ambient temperature	0℃-60℃
Storage temperature	-30℃-75℃
Relative humidity	20%~85%RH (no condensation)
Relay output capacity Cooling / heating	10A/250VAC
Front panel protection class	IP65
Front panel size	80x35 mm
Mounting cut-out size	71 x 29 mm
Overall dimensions	80x35x66 mm
Sensor cable length	2m (including probe length)
