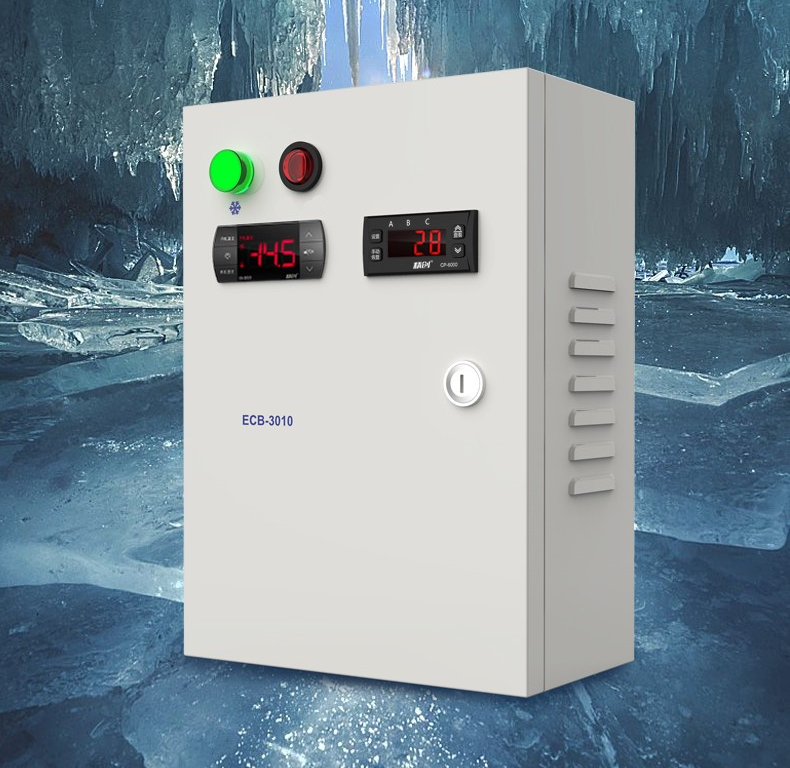

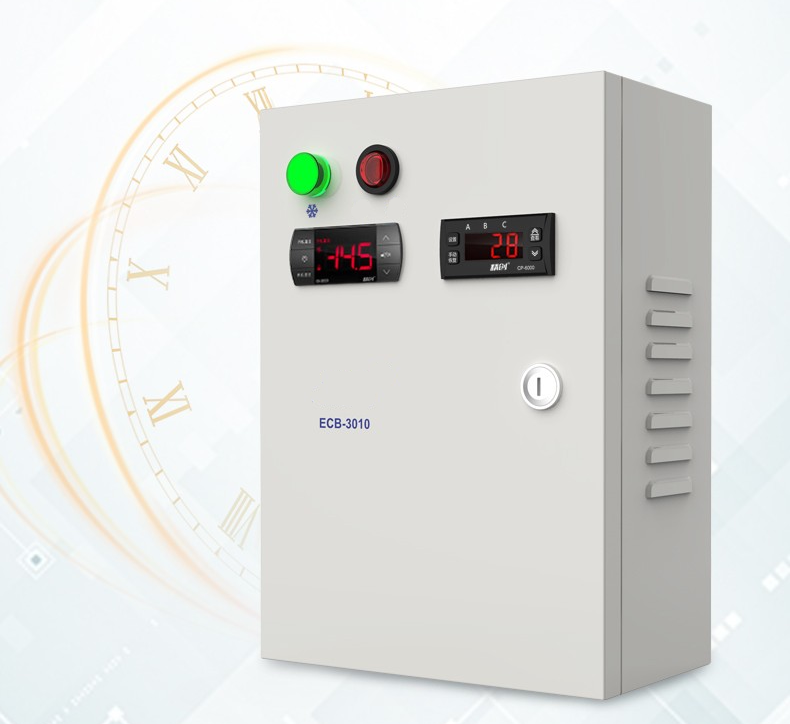

ECB-3010 cold room parts 5hp elitech ecb electric control box
ECB-30 electronic control box
Features:
ECB-30 electric control box is a company designed for refrigeration
unit optimization design of a product. Dual sensor settings, can
control three-way load, full-featured, comprehensive protection,
easy operation, stable and reliable performance, with excellent
price.
Technical Parameters:
Power: three-phase five-wire (or three-phase four-wire) 380VAC ±
10% / 50Hz
temperature measurement and control range: -40 ~ +50 ℃;
temperature measurement and control precision: ± 0.5 ℃ -10 ~ +10 ℃,
the rest ± 1 ℃;
compressor delay protection time: 0 ~ 9 minutes adjustable;
control the maximum capacity of the compressor (KW): 5.5 11 15
control the maximum capacity of fans (KW): 4
control the maximum capacity of frost (KW): 5.5 7.5 11
Three-way load control, can be achieved on the compressor, fan,
defroster separate control;
Dual temperature sensor, the compressor and the defroster were
temperature control, safer, energy saving;
hot air and electric two defrosting mode;
compressor comprehensive protection function;
automatic and manual control functions
sensor failure and over-temperature alarm function external;
adjustable delay compressor.
Professional refrigeration control
Adopt touch thermostat EK-3010
The touch button has a high waterproof level
No need for menu one-button setting, easy to operate,
Cost-effective
Single Refrigeration Control Output Compressor Individual Control
With phase loss protection, phase sequence protection,
Three-phase unbalance protection function
Compressor comprehensive protection, time delay adjustable
