    KUB800 Water Cooled Condensing Units 8HP Display Chiller

    Ask Lasest Price
    Brand Name : KUB
    Model Number : KUB800
    Certification : CE
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Year
    Delivery Time : 7
    • Product Details
    • Company Profile

    KUB800 Water Cooled Condensing Units 8HP Display Chiller

    Supply Ability
    Supply Ability
    1000 Set/Sets per Year
    Packaging & Delivery
    Packaging Details
    The wooden packaging
    Port
    Shanghai
    Lead Time:
    Quantity(Sets)1 - 12 - 5>5
    Est. Time(days)2025To be negotiated

    KUB800 Made in China chiller compressors 8HP display chiller price

    Product nameAir cooled chillerHorsepower8HPOriginalMade in ChinaBrandKUB

    KUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display ChillerKUB800 Water Cooled Condensing Units 8HP Display Chiller


    Specifications

    No.Specification ParameterDescriptionNo.Specification ParameterDescription
    1Rated input voltage220-250VAC 50/60HZ6Switch Output5 relays 250VAC 2A
    2Temperature Range-40~100℃7Relay load type

    D01:annunciator

    D02-D05: contactor or valve

    3Measurement Accuracy0.1℃@25℃8Switch Input12 passive signal inputs
    4Working Environment-10℃~60℃,≤85%RH non-condensation9Analog Input1 NTC temperature sensor
    5Storage Environment-20℃~70℃,≤85%RH non-condensation10Current Input4 ways of current (0.3~35A)

    Panel Diagram

    First Power-on

    The controller needs to be configured when powered on for the first time. Please refer to 10.4 Configuration guide for specific operation.


    Function Menu

    Press the button on the main screen to enter the Function Menu, which includes five items as the table below:

    No.Menu ItemFuntionRemark
    1User SettingsTo display user parametersFor number of user parameters and their implications, please refer to: 9 User Parameters Table.
    2Unit StatusTo display the current operating status of the unitCurrent value is not displayed when current module is not used.
    3History ListAllowing the query of the last 10 faultsPress for 2s to clear the fault history.
    4Comp run timeTo display the cumulative operation time of the compressor
    5VersionTo check the current software version

    User Parameters Table


    No.Parameter NameFactory DefaultSetting RangeRemark
    1Lock T.setNoYes ~ No

    when locked.

    No: the set temperature can be modified on the main screen.

    2T.setpoint12.0℃

    [T.setpoint min]

    ~[ T.setpoint max]

    Setting range is limited by the manufacturer parameters [T.setpoint max], [T.setpoint min].

    (When the [TEMP Unit] is set “Fahrenheit”, the parameter is not displayed.)

    3T.setpoint53.6 ℉

    [T.setpoint min]

    ~[ T.setpoint max]

    Setting range is limited by the manufacturer parameters [T.setpoint max], [T.setpoint min].

    (When the [TEMP Unit] is set “Celsius”, the parameter is not displayed.)

    4TEMP UnitCelsiusCelsius;Fahrenheit
    5Contrast3220~44Adjust the LCD contrast
    6On/Off typeLocalLocal / Local + Remote / Remote

    Local: the unit can only start and stop locally.

    Local + Remote: the start and stop of the unit can be controlled both locally and remotely.

    Remote: the unit can only start and stop remotely.

    7Backlight On00~255 minute(s)0: backlight is not turned off.
    8Language中文中文~EnglishSelect the display language.
    9Comp SelectTwo Comp1#Comp/2#Comp/Two CompSelect the Comp to run. if select one comp the other does not work. The parameter is not listed for the single comp machine.

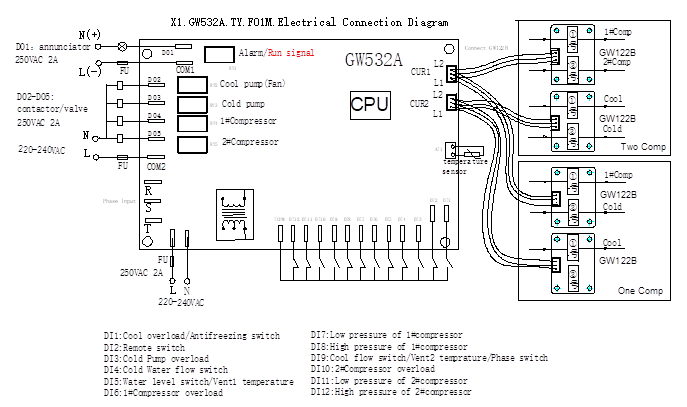

    Electrical Connection Diagram



    Installation Dimensions


    KUB800 Water Cooled Condensing Units 8HP Display Chiller
