Highlights of RC2 Screw Compressor

Energy-efficient Motor
1, Semi-hermetic, flange-mount design
2, Effective cooling by suction refrigerant gas
3, Part winding, star-delta, DOL starter options available
4, Variable frequency drive (VFD) option available
5, Optimized housepower respond to refrigerant properties

6, Cooling guide vane design on motor casing

7, F-class motor insultation

Economizer (Sub-cooler) Operation
1, Increasing cooling capacity at minimum addtional power
2, Stable middle pressure, easy to control
3, Specially-designed gas flow passageway on slide valve
4, Subcooling works also works at partial load

High-efficiency Screw Rotor Profile
1, Five-to-six lobes patented rotor profile
2, High displacement, low operation noise
3, Excellent volumetric efficiency and minimum clearance
4, Heat process and heavy-duty design
5, In-house manufacturing technology
6, Precisely machining and quality assurance

Dual Capacity Control
1, Flanged-on solenoid valve, easy on installation
2, Step or Continuous (Stepless) control mechanism
3, High ingress protection
4, Quick loading and unloading to target water temp.
5, Special supply voltage on request

Durable Bearing Structure
1, High-quality radial and axial bearings
2, Anti-reverse rotation design
3, α balance piston against axial thrust
4, Long life cycle and service time
5, Oversized bearings, heavy-duty

Nominal HP:
All above Nominal HP are not equal to the maximum compressor HP;

Nominal HP:
All above Nominal HP are not equal to the maximum compressor HP;
please refer to Hanbell selection software for power input in specified working condition.

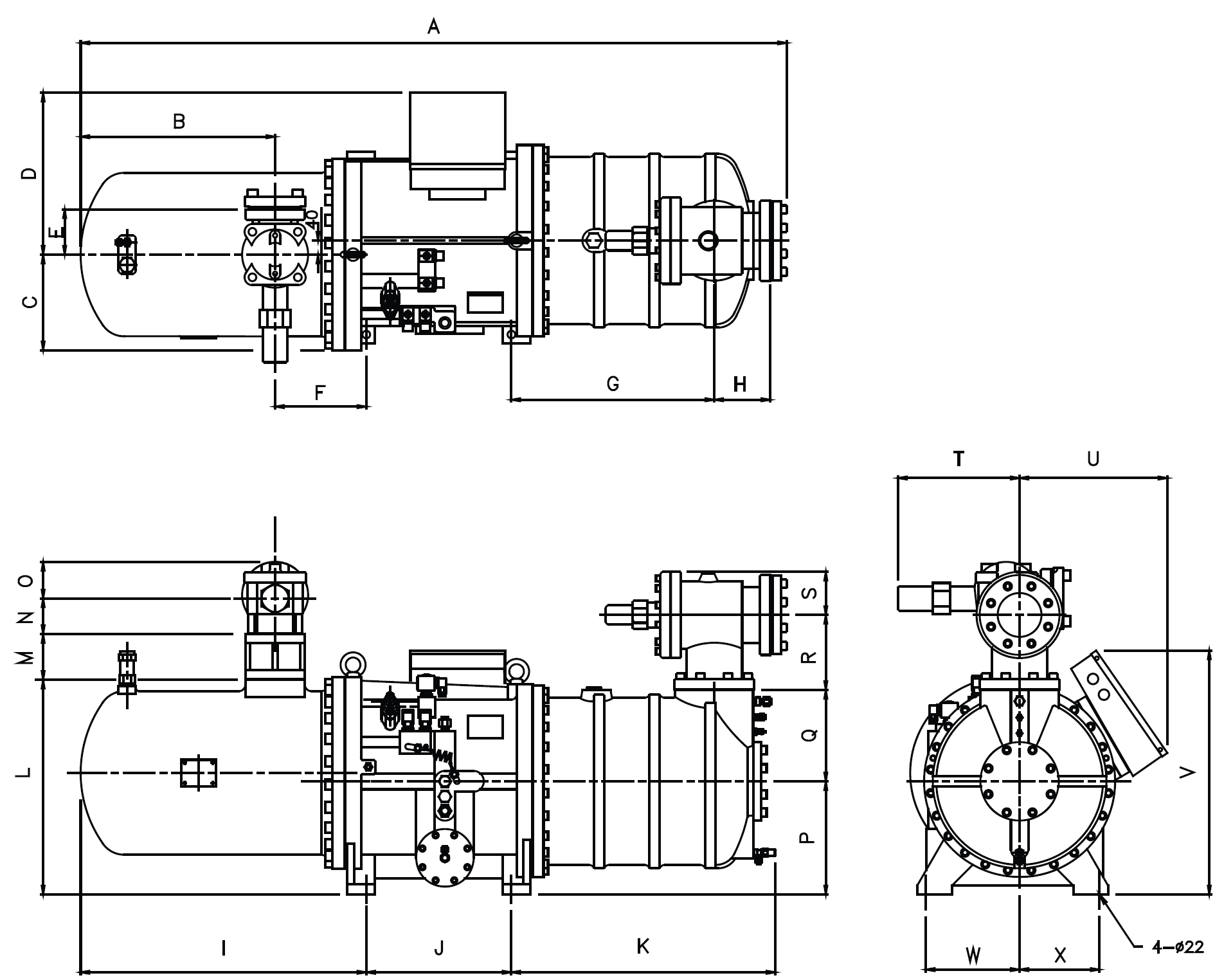

RC2-100~RC2-180 Outline
Note: Number in red indicate dimensions
in which RC2-B differs from RC2-A (A / B)

RC2-710~RC2-930 Outline

RC2-100~RC2-930 Application Limits
