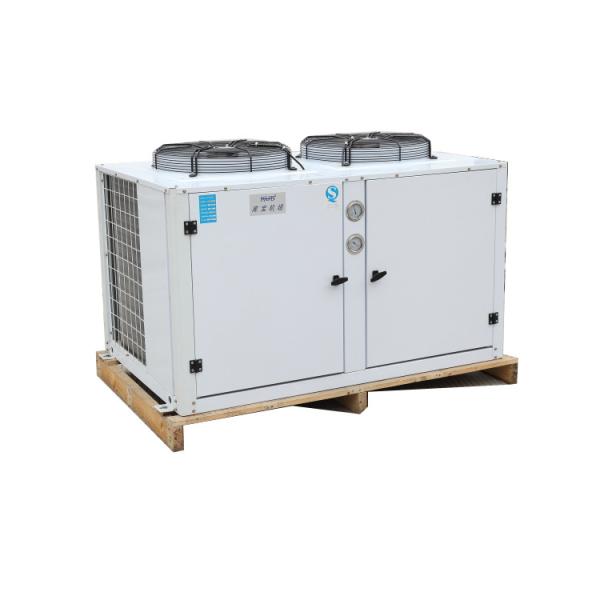

    15HP Refrigeration air Cooled Condensing Units R404A

    Ask Lasest Price
    Brand Name : KUB
    Model Number : 10HP 12HP 15HP
    Certification : CE
    Price : consult
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Set/Sets per Year
    Delivery Time : 5-7works
    • Product Details
    • Company Profile

    15HP Refrigeration air Cooled Condensing Units R404A

    10HP 12HP 15HP Refrigeration compressor air cooled chiller industrial chiller

    15HP Refrigeration air Cooled Condensing Units R404A

    Product descriptions from the supplier

    Overview

    7HP to 15HP condensing unit cold room use semi hermetic scroll compressor Enhanced vapor injection refrigeration condensing unit

    List YSF90V100
    Model Quantity
    Compressor YSF90V100 1
    Ball valve 28mm 1
    Box sheet metal 1
    Air cooler condenser 120m² 1
    Condenser fan 500 2
    Reservoir 10L 1
    Filter drier 165S 1
    Solenoid valve SV78-5,16mm 1
    Pressure controller P830E 1
    Oil gauge (high pressre) 1
    Oil gauge (low pressre) 1
    Dashboard (two holes) 1
    Junction Box 1

    Chiller configuration table
    parts 10HP
    model quantity
    Compressor (10HP) YH307 1
    Channel steel frame   1
    Air condenser) 120Square u 1
    Freon   1
    Reservoir 10HP 1
    Filter (kubao) 165S 1
    Solenoid valve SV78-5 1
    Pressure controller (kubao) P830E 1
    High voltage meter (domestic) Oil gauge 1
    Low voltage meter (domestic) Oil gauge 1
    Surface plate (two holes)   1
    Control box For chiller, including 1 water pump control 1
    Water flow switch   1
    Expansion valve TGEX11 1
    Plate heat exchanger ZL50-48 1
    Water pump Single stage centrifugal water pump ms250, 2.2kw
    Multistage centrifugal water pump chlf8-20, 0.75kw
    8Cubic meter, 18 meters, inlet 40, outlet 32
    1
    The Conduit   1

    Chiller configuration table
    parts 12HP
    model quantity
    Compressor (12HP) YH355 1
    Channel steel frame   1
    Air condenser 140Square u 1
    Freon   1
    Reservoir 10HP 1
    Filter (kubao) 165S 1
    Solenoid valve SV78-5 1
    Pressure controller (kubao) P830E 1
    High voltage meter (domestic) Oil gauge 1
    Low voltage meter (domestic) Oil gauge 1
    Surface plate (two holes)   1
    Control box For chiller, including 1 water pump control 1
    Water flow switch   1
    Expansion valve TGEX12 1
    Plate heat exchanger ZL50-60 1
    Water pump Single stage centrifugal water pump ms250, 2.2kw
    Multistage centrifugal water pump chlf8-20, 0.75kw
    8Cubic meter, 18 meters, inlet 40, outlet 32
    1
    The Conduit DN40 1

    Chiller configuration table
    parts 15HP
    model quantity
    Compressor (15HP) VR190 1
    Channel steel frame   1
    Air condenser (20HP) 170Square u 1
    Freon   1
    Reservoir 15HP 1
    Filter (kubao) 165S 1
    Solenoid valve SV78-5 1
    Pressure controller (kubao) P830E 1
    High voltage meter (domestic) Oil gauge 1
    Low voltage meter (domestic) Oil gauge 1
    Surface plate (two holes)   1
    Control box For chiller, including 1 water pump control 1
    Water flow switch   1
    Expansion valve TGEX15 2
    Plate heat exchanger ZL50-80 1
    Water pump Chlf12-20-1.2kw flow: 12m3, lift: 19.5m, motor diameter: 1.2kW (50, 50) 1
    The Conduit DN50 1
