    Semi Hermetic 2 Stage Refrigeration Condensing Unit Air Cooled

    Ask Lasest Price
    Brand Name : KUB
    Model Number : Describe
    Certification : CE
    Price : Consult
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Year
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Semi Hermetic 2 Stage Refrigeration Condensing Unit Air Cooled

    1. Produc t de sc ription
    ◆ With Bitzer semi-hermetic, two stage compressor
    ◆ With world famous refrigerant components
    ◆ With mid stage design to greatly im prove EER value.
    ◆ With lower evaporative temp. Min. evaporate temp can be -50℃ when system with R22 refrigerant, Min. evaporate temp
    can be -65℃ when system with R404A refrigerant..


    4. Spe c ific a tions:
    4.1 2-strage air cooled condensing units
    4.1.1Refrigerant R22

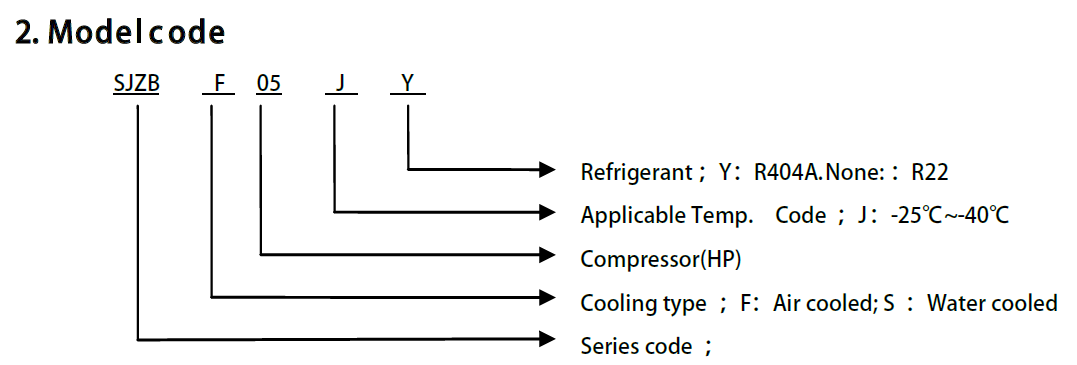

    ModelSJZBF05JSJZBF08JSJZBF12JSJZBF16JSJZBF20JSJZBF25JSJZBF30J
    Temp ( ℃)-25℃~-40℃
    Power380V/3Ph/50HZ
    CompressorS4T5.2S4N8.2S4G12.2S6J16.2S6H20.2S6G25.2S6F30.2
    CondenserFan Qty2244442
    Fan Voltage(V)380380380380380380380
    Fan Watt(W)180×2180×2180×4180×4180×4180×4800×2
    Comp Cap. & InputTe.
    -35℃
    Cap (W)501072401093016320189202170026000
    Input (KW)3.755.68.4611.9713.8715.9219.05
    Te.
    -40℃
    Cap (W)39505680858012920149801720020600
    Input (KW)3.415.087.6810.5812.2614.0716.84
    Te.
    -45℃
    Cap (W)3020431065109810113701306015620
    Input (KW)3.044.566.899.1710.6312.214.6
    PipeGas In (mm)φ28φ28φ35φ42φ42φ42φ42
    Liquid dia. (mm)φ16φ16φ22φ22φ22φ22φ22
    Overall sizesA(mm)1085127012701270134013401250
    B(mm)9309301050105011101130730
    C(mm)6608101210146014101410930
    Installation size(a×b mm)800×885800×8851000×10051000×10051000×10651000×1085910×685

    Remark :1) Condensing Tem . is 45℃;
    2) For 30Hp condensing units, condenser is separately installed. the size of condenser is not include in above sheet.


    4.1.2 Refrigerant R404A

    ModelSJZBF05JYSJZBF08JYSJZBF12JYSJZBF16JYSJZBF20JYSJZBF25JYSJZBF30JY
    Temp ( ℃)-25℃~-40℃
    Power380V/3Ph/50HZ
    CompressorS4T5.2YS4N8.2YS4G12.2YS6J16.2YS6H20.2YS6G25.2YS6F30.2Y
    CondenserFan Qty2244442
    Fan Voltage(V)380380380380380380380
    Fan Watt(W)180×2180×2180×4180×4180×4180×4800×2
    Comp Cap. &InputTe.
    -35℃
    Cap (W)565080101254017480201002300027200
    Input (KW)4.596.569.913.9616.1718.5622.2
    Te.
    -40℃
    Cap (W)455064601026014380165801892022400
    Input (KW)4.175.958.9612.5614.5516.719.98
    Te.
    -45℃
    Cap (W)36005130826011640134301534018200
    Input (KW)3.735.33811.2112.9914.9217.85
    PipeGas In (mm)φ28φ28φ35φ42φ42φ42φ42
    Liquid dia. (mm)φ16φ16φ22φ22φ22φ22φ22
    Overall sizesA(mm)1085127012701270134013401250
    B(mm)9309301050105011101130730
    C(mm)6608101210146014101410927
    Installation size(a×b mm)800×885800×8851000×10051000×10051000×10651000×1085910×685

    Remark: For 30Hp condensing units, condenser is separately installed. the size of condenser is not include in above sheet.


    4.2 2 -strage water cooled condensing units
    4.2.1 Refrigerant R22

    ModelSJZBS05JSJZBS08JSJZBS12JSJZBS16JSJZBS20JSJZBS25JSJZBS30J
    Temp ( ℃)-25℃~-40℃
    Power380V/50HZ
    CompressorS4T-5.2S4N-8.2S4G -12.2S6J-16.2S6H-20.2S6G -25.2S6F-30.2
    CondenserTypeShell Tube Type
    Cooling Water
    (m3/h)
    2345.66.67.510
    Water Pipe1-1/4″1-1/2″1-1/2″2-1/2"2-1/2"2-1/2"2- 1/2″
    Comp Cap. &InputTe.
    -35℃
    Cap (W)510073801115016490191202190026300
    Input (KW)3.555.38.011.3513.215.118.1
    Te.
    -40℃
    Cap (W)40105810878013090151701742020800
    Input (KW)3.234.817.2610.111.6713.416.0
    Te.
    -45℃
    Cap (W)3080444067001000116001331015930
    Input (KW)2.884.336.548.810.211.714.0
    PipeGas In (mm)φ28φ28φ35φ42φ42φ42φ42
    Liquid dia. (mm)Φ16Φ16φ22φ22φ22φ22φ22
    Overall sizesA(mm)900105012601300130013001300
    B(mm)650650720720720720720
    C(mm)795855950990990990990
    Installation size(a×b mm)500×605650×605800×675880×675880×675880×675880×675

    Condensin g Temp. is 45 ℃;


    4.2.2 Refrigerant R404A/R507A

    ModelSJZBS05JYSJZBS08JYSJZBS12JYSJZBS16JYSJZBS20JYSJZBS25JYSJZBS30JY
    Temp ( ℃)-25℃~-40℃
    Power380V/50HZ
    CompressorS4T-5.2YS4N-8.2YS4G -12.2YS6J-16.2YS6H-20.2YS6G -25.2YS6F-30.2Y
    CondenserTypeHigh Efficient Pipe and Shell
    Cooling Water
    (m3/h)
    2345.66.67.510
    Water Pipe1-1/4″1-1/2″1-1/2″2-1/2"2-1/2"2-1/2"2- 1/2″
    Comp Cap. &InputTe.
    -35℃
    Cap (W)580082201293017990208002370028100
    Input (KW)4.366.229.3713.2115.3217.5921
    Te.
    -40℃
    Cap (W)467066401058014810170901952023100
    Input (KW)3.965.658.4911.913.7915.8518.96
    Te.
    -45℃
    Cap (W)37105290852012000138501583018790
    Input (KW)3.555.077.610.6312.3214.1616.95
    PipeGas In (mm)φ28φ28φ35φ42φ42φ42φ42
    Liquid dia. (mm)φ16φ16φ22φ22φ22φ22φ22
    Overall sizesA(mm)900105012601300130013001300
    B(mm)650650720720720720720
    C(mm)795855950990990990990
    Installation size(a×b mm)500×605650×605800×675880×675880×675880×675880×675

    Condensing Temp. is 40 ℃;
