380V 50HZ D Type Evaporator 3Ph Stainless Steel Marine Cold Room Evaporator

Ask Lasest Price
Brand Name :	KUB
Model Number :	DJ/85
Certification :	CE
Price :	Consult
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Year
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

380V 50HZ D Type Evaporator 3Ph Stainless Steel Marine Cold Room Evaporator

DJ/85 380V 50HZ Marine evaporator cold storage evaporator Stainless steel evaporator refrigeration evaporator

Technical requirements:

1,Heat sink inner diameter 2400mm , Fin spacing 9mm, DJ85m²

2,Fin tube expanding closely, copper pipe and sheet metal without loose.

3,With 3-φ500 of high ram low temperature resistant motor , power 3 x 550 w, air volume 3 x 6800 m/h.

4,air tightness pressure 2.5 MPa, placed in water for 5 minutes without leakage.

5,Return air pipe φ40 ,Into the liquid pipe φ25, distributor 6 road

6,stainless steel shell, stainless steel duct, stainless steel gears.

7,The power of a single electric heating tube is 2KW, there are 6

Model	W Nominal　refrigeration volume	㎡ Area of cooling	(380V)Air cooler				Defrost electric heating tube		mm Inlet	mm Outlet
			W Power	m³/h Air volume	mm Diameter	m Range	kw Coll	kw Drip Pan

DL-2.1/10	2100	10	80	1563	300	7	0.6	0.6	12	19
DD-1.4/7	1400	7					1×0.6	0.6
DJ-0.8/5	800	5					1×0.6	0.6
DL-3.1/15	3100	15	2×80	2×1563	300	7	0.9	0.9	12	19
DD-2.4/12	2400	12					1×0.9	0.9
DJ-1.3/8	1300	8					1×0.9	0.9
DL-4.1/20	4100	20	2×80	2×1563	300	7	1.3	1.3	12	19
DD-3/15	3000	15					1.3	1.3
DJ-1.8/10	1800	10					1.3	1.3
DL-5.2/25	5200	25	2×140	2×2290	350	7	2×1.2	1.2	12	22
DD-4.4/22	4400	22					2×1.2	1.2
DJ-2.1/15	2100	15					2×1.2	1.2
DL-8.3/40	8300	40	2×180	2×3400	400	9	2×1.4	1.4	16	25
DD-6/30	6000	30					2×1.4	1.4
DJ-4/20	4000	20					2×1.4	1.4
DL-11.5/55	11500	55	2×180	2×3400	400	9	2×1.4	1.4	16	25
DD-8/40	8000	40					2×1.4	1.4
DJ-6/30	6000	30					2×1.4	1.4
DL-16.7/80	16700	80	2×250	2×4800	450	9	2×1.5	1.5	19	38
DD-12/60	12000	60					5×1.5	1.5
DJ-8/40	8000	40					5×1.5	1.5
DL-22/105	22000	105	2×250	2×4800	450	9	2×1.5	1.5	19	38
DD-16/80	16000	80					5×1.5	1.5
DJ-11/15	11000	55					5×1.5	1.5
DL-25.8/125	25800	125	3×250	3×4800	450	9	2×2.1	2.1	19	38
DD-20/100	20000	100					5×2.1	2.1
DJ-14/70	14000	70					5×2.1	2.1
DL-33.6/160	33600	160	3×250	3×4800	450	9	2×2.4	2.4	19	38
DD-24/120	24000	120					5×2.4	2.4
DJ-17/85	17000	85					5×2.4	2.4
DL-38.7/185	38700	185	4×250	4×4800	450	9	2×3	3	25	50
DD-28/140	28000	140					5×3	3
DJ-20/100	20000	100					5×3	3
DL-44/210	44000	210	4×250	4×4800	450	9	2×3.2	3.2	25	50
DD-32/160	32000	160					5×3.2	3.2
DJ-23/115	23000	115					5×3.2	3.2
DL-52.9/260	52900	260	2×780	2×10820	600	12	5×2.7	2.7	25	50
DD-40/200	40000	200					8×2.7	2.7
DJ-28/140	28000	140					8×2.7	2.7
DL-67.2/330	67200	330	3×780	3×10820	600	12	5×3.3	3.3	25	50
DD-50/250	50000	250					8×3.3	3.3
DJ-34/170	34000	170					8×3.3	3.3
DL-85.6/450	85600	450	3×780	3×10820	600	12	5×3.5	3.5	25	50
DD-60/300	60000	300					8×3.5	3.5
DJ-42/210	42000	210					8×3.5	3.5
DLThe nominal cooling capacity of the type air cooler refers to: t room= 0℃, △T=T room -T. =7℃, the fin pitch is 4.5mm.
DDThe nominal cooling capacity of the type air cooler refers to: t room= -18℃, △T=T room -T. =7℃, the fin pitch is 6mm.
DJThe nominal cooling capacity of the type air cooler refers to: t room= -25℃, △T=T room -T. =7℃, the fin pitch is 9mm.

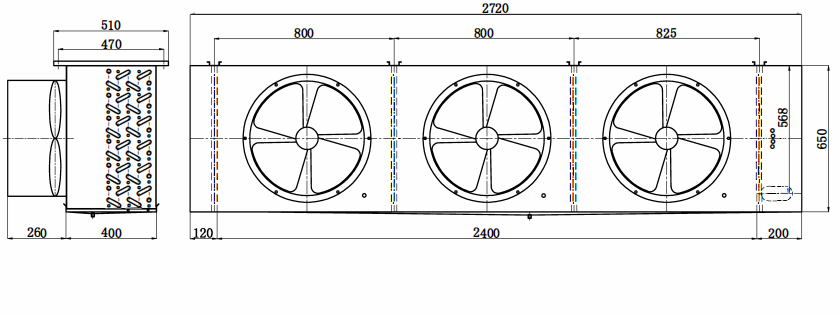

Model	L	W	H	Installation size		left margin	Center distance			Drain pipe (inch)
	A	B	C	D宽	E长	F	E1	E2	E3
DL-2.1/10	720	310	440	260	530	85	／	／	／	3/4"
DD-1.4/7
DJ-0.8/5
DL-3.1/15	970	310	440	260	780	85	／	／	／	3/4"
DD-2.4/12
DJ-1.3/8
DL-4.1/20	1120	310	440	260	1080	85	／	／	／	3/4"
DD-3/15
DJ-1.8/10
DL-5.2/25	1120	380	440	330	1080	85	／	／	／	3/4"
DD-4.4/22
DJ-2.1/15
DL-8.1/40	1520	420	560	370	1250	95	／	／	／	3/4"
DD-6/30
DJ-4/20
DL-11.5/55	1520	420	560	370	1250	95	／	／	／	3/4"
DD-8/40
DJ-6/30
DL-16.7/80	1820	480	660	440	1550	95	750	／	／	1"
DD-12/60
DJ-8/40
DL-22/105	1820	480	660	440	1550	95	750	／	／	1"
DD-16/80
DJ-11/15
DL-25.8/125	2300	480	660	440	2030	95	660	660	／	1"
DD-20/100
DJ-14/70
DL-33.6/160	2720	480	660	440	2450	95	800	800	／	1"
DD-24/120
DJ-17/85
DL-38.7/185	3120	480	660	440	2850	95	700	700	700	1"
DD-28.2/140
DJ-20/100
DL-44/210	3520	480	660	440	3250	95	800	800	800	1"
DD-32/160
DJ-23/115
DL-52.9/260	2220	730	860	650	1950	95	950	／	／	2"
DD-40/200
DJ-28/140
DL-67/330	2720	730	860	650	2450	95	800	800	／	2"
DD-50/250
DJ-34/170
DL-85.6/450	3200	1000	860	650	2930	95	960	960	／	2"
DD-60/310
DJ-42/210
