Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | KUB |
Model Number : | KUB200 |
Certification : | CE |
Price : | Consult |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1000 Piece/Pieces per Year |
Delivery Time : | 15days |

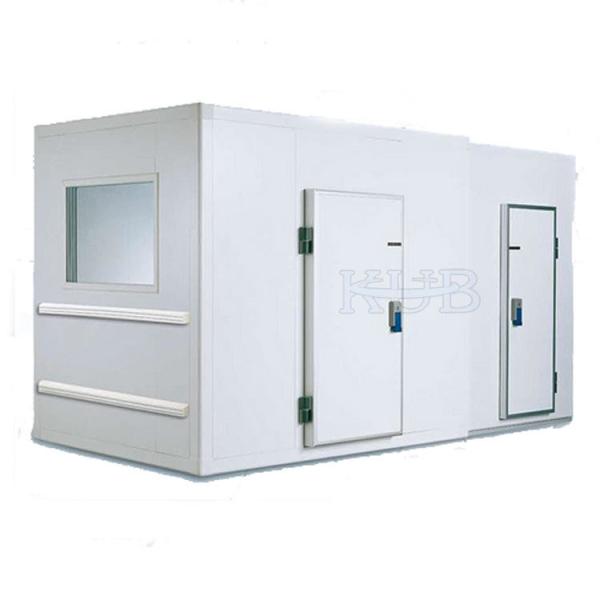

0-5 degrees Celsius cold storage price cold storage room cold room price
Cold storage support custom production, please contact me for more parameters
NO. | ITEM | DESCRIPTION | QTY | Unit Price (USD) | Amount(USD) |
Exterior Protection Structure | |||||
Cold room External dimensions 3*2*2.2m=13.2m³ Temperature : 0-5 degree 100mm panels | |||||
1 | Insulation Panel | Thickness: 100mm/0.40mm, Two side painted steel, | 34 | 29/square | 986 |
2 | Hinged door | 800*1800mm Plastic frame half buried door Two side painted steel | 1 | 300/set | 300 |
3 | LED light | 8w 220V 50HZ | 1 | 10/pcs | 10 |
Refrigeration System | |||||
4 | Condensing unit | Box type air cooler condensing unit Use compressor ZB15KQE 2HP R404A 220V 1PH 50HZ | 1 | 595/set | 595 |
5 | Evaporator | Model: DD-3/15 Refrigerant gas: R 404A Fan voltage :220v 1ph 50hz electric defrost | 1 | 220/set | 220 |
6 | Expansion Valve | T2 R404A | 1 | 45/set | 45 |
7 | Control box | Model: ECB5060(5HP) 220v 1ph 50hz | 1 | 150/pcs | 150 |
8 | Pipe | Copper pipes 16mm 10m/room/set | 10 | 15/m | 150 |
9 | Pipe | Copper pipes 10mm 10m/room/set | 10 | 10/m | 100 |
TOTAL (EXW Shanghai factory price ) | 2556 |
![]() |
