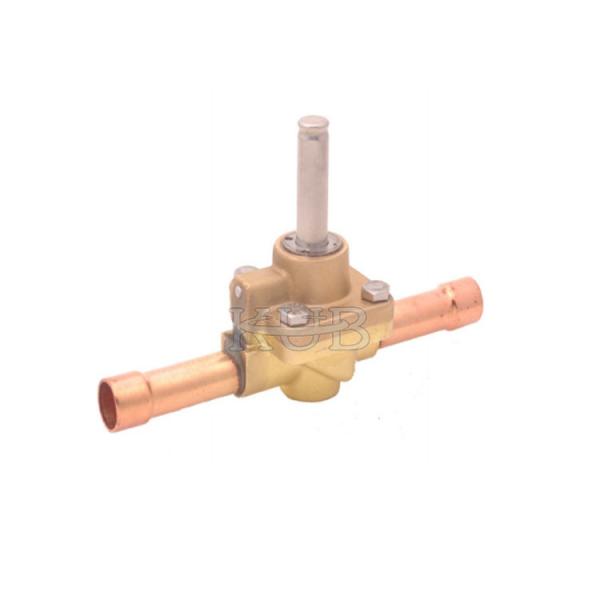

    100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve

    Ask Lasest Price
    Brand Name : Emerson
    Model Number : 240RA-12T7T
    Price : 150
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 units per month
    Delivery Time : 3-8days
    • Product Details
    • Company Profile

    100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve

    100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve


    The 100RB is a direct-acting, 2-way, normally closed valve. 100 RB
    valves are used for liquid or discharge gas refrigerant service.
    Features
    • One coil fits all valve sizes
    • Extended ends for easy installation (standard)
    • Long-life molded coils
    • PTFE O-ring for superior external sealing
    Options
    • SAE or ODF connection sizes in 1/4” and 3/8”, 1/4” NPTF
    Specifications
    • Maximum fluid temperature: 250°F
    • Maximum working pressure: 500 psig
    • MOPD: 300 psig
    • UL/CUL file number: MP 604
    NOTE: Mounting enclosing tube more than 90° off vertical
    up position is not recommended.

    Nomenclature example: 100RB 2F2 VLC

    100RB2F2VLC
    Valve SeriesDesign Series

    Port Size

    (in 1/16”)

    Connection Type

    F= SAE

    S=ODF

    P=NPTF

    Connection Size

    (in 1/8”)

    Coil*

    NOTE: Valves are shipped without the solenoid coils (VLC = Valve Less Coil). See coil assemblies for availability.
    100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve
    200RB Solenoid Valves & Coils
    The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.
    Features
    • One coil fits all valve sizes
    • Extended ends for easy installation (standard)
    • Long-life molded coils
    • PTFE O-ring for superior external sealing
    Options
    • Available in 7 orifice sizes
    • Manual stem or mounting stud
    • Bi-Flow operation-conversion either factory assembled or with kit (except 200RB 7 & 9 )
    Nomenclature example: 200RB 4T3M VLC
    Specifications
    • Maximum fluid temperature: 250°F
    • Maximum working pressure: 500 psig
    • Minimum operating pressure drop: 2 psi
    • MOPD: 300 psig
    • UL/CUL file number: MP604
    NOTE: Mounting enclosing tube more than 90o off vertical up position is not recommended.
    200RB4T3MVLC
    Valve SeriesDesignPort SizeConnection TypeConnection SizeCoil*
    Series(in 1/16”)F = SAE(In 1/8”)M = manual stem
    S = ODFT = mounting stud
    P = NPTF(optional)
    T = Copper Extended Ends
    *NOTE: Valves are shipped without the solenoid coils (VLC = Valve Less Coil). See coil assemblies for availibility.
    Ordering Information and Nominal* Liquid Capacity Table – Tons (kW)
    PCNDescriptionConnection SizeR-12R-134aR-22R-407CR-404A/R-507R-502
    Standard
    Valve
    Mounting
    Stud1
    Manual
    Stem2
    053104- -N/A200RB 2 F 21/4 SAE2.3 (8.1)2.7 (9.5)3.6 (12.7)3.4 (12.0)1.9 (6.7)1.9 (6.7)
    062611- -N/A200RB 2 F 33/8 SAE
    053105053236N/A200RB 2 T 21/4 ODF
    053106054170N/A200RB 2 T 33/8 ODF
    052725- -- -200RB 3 F 21/4 SAE3.0 (10.6)3.6 (12.7)4.8 (16.9)4.5 (15.8)2.5 (8.8)2.6 (9.1)
    052726056438- -200RB 3 F 33/8 SAE
    052727055855- -200RB 3 F 41/2 SAE
    049608- -- -200RB 3 T 21/4 ODF
    049609049585065620200RB 3 T 33/8 ODF
    049692- -065621200RB 3 T 41/2 ODF
    047506047508047507200RB 4 F 33/8 SAE5.0 (17.6)6.0 (21.1)8.0 (28.1)7.5 (26.4)4.2 (14.8)4.2 (14.8)
    059728047510047509200RB 4 P 33/8 NPTF
    047511047513047512200RB 4 S 33/8 ODF X 1/2 ODM
    047516047515047514200RB 4 S 41/2 ODF X 5/8 ODM
    047517049162049186200RB 4 T 33/8 ODF
    047518049163049187200RB 4 T 41/2 ODF
    058950058045056518200RB 4 T 55/8 ODF
    047519047521047520200RB 5 F 41/2 SAE5.2 (18.3)6.2 (21.8)8.2 (28.8)7.7 (27.1)4.3 (15.1)4.5 (15.8)
    059729047523047522200RB 5 F 55/8 SAE
    047524047526047525200RB 5 S 41/2 ODF X 5/8 ODM
    049201047528047527200RB 5 S 55/8 ODF
    061227054323- -200RB 5 T 33/8 ODF
    057206049164049188200RB 5 T 41/2 ODF
    059730049165049189200RB 5 T 55/8 ODF
    059731047531047530200RB 6 F 41/2 SAE6.0 (21.1)7.2 (25.3)9.5 (33.4)8.9 (31.3)5.0 (17.6)5.1 (17.9)
    059732047534047533200RB 6 F 55/8 SAE
    059733047536047535200RB 6 P 33/8 NPTF
    047537047539047538200RB 6 S 41/2 ODF X 5/8 ODM
    047540047542047541200RB 6 S 55/8 ODF
    047544047546047545200RB 6 T 41/2 ODF
    056766047548047547200RB 6 T 55/8 ODF
    064037- -- -200RB 7 S 55/8 ODF X 7/8 ODM10.8 (38.0)12.7 (44.7)17.0 (59.8)16.2 (57.0)9.1 (32.0)9.2 (32.4)
    064062- -- -200RB 7 T 41/2 ODF
    064063064562064267200RB 7 T 55/8 ODF
    064282064284064283200RB 7 T 77/8 ODF
    064762064764064763200RB 9 T 55/8 ODF19.6 (68.9)23.6 (83.0)30.5 (107.3)29.0 (102.0)16.4 (57.7)16.2 (57.0)
    064645064766064765200RB 9 T 77/8 ODF
    064767064769064768200RB 9 T 91 1/8 ODF
    1 Add “T” to the end of description for Mounting Stud
    2 Add “M” to the end of the description for Manual Stem
    Capacities based on 100°F liquid and 40°F saturated evaporator per ARI standard 760-87. All ratings are based on largest connection size.
    *See Extended Capacity Tables for ratings at a wide range of conditions.

    The 240RA is a 2-way, normally closed diaphragm valve. 240RA valves are used for liquid, suction, and hot gas service.

    100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve

    Features

    One coil fits all valve sizes

    Can be brazed into the line without disassembly

    PTFE diaphragm for high temperature applications

    Extended ends for easy installation (standard)

    Long-life molded coils

    Mounting stud models can be field converted to

    manual stem


    Options

    Manual stem or mounting stud


    Nomenclature example: 240RA 8T5M VLC

    Specifications

    Maximum fluid temperature: 250°F

    Maximum working pressure: 500 psig

    MOPD: 300 psig

    UL/CUL file number: MP604


    NOTE: Mounting enclosing tube more than 90o off vertical up position is not recommended.

    240RA**8T5MVLC
    Valve SeriesDesign Series

    Port Size

    (in 1/16”)

    Connection Type

    T = copper entended ends

    Connection Size

    (in 1/8”)

    M = manual stem T = mounting stud (optional)Coil*

    * NOTE: Valves are shipped without the solenoid coils (VLC = Valve Less Coil). See coil assemblies for availability.

    **NOTE: Letter “H” is no longer used since all 240RA valves now contain the high temperature diaphragm for hot gas.


    Ordering Information and Nominal* Liquid Capacity Table – Tons (kW)

    PCNDescriptionConnection SizeR-12R-134aR-22R-407CR-404A/R-507R-502

    Standard

    Valve

    Mounting

    Stud1

    Manual

    Stem2

    060374040846040845240RA 8 T 55/8 ODF12.2 (43.4)14.8 (52.5)15.6 (55.2)14.8 (52.4)8.4 (29.5)10.1 (35.0)
    060375044860045753240RA 8 T 77/8 ODF
    060376040848040847240RA 9 T 55/8 ODF18.2 (64.6)22.0 (78.0)23.3 (82.5)22.1 (78.2)15.3 (54.2)15.1 (53.5)
    060377043205043204240RA 9 T 77/8 ODF24.0 (85.0)28.9 (102.3)30.5 (108.0)29.0 (103.0)21.0 (71.1)19.8 (70.1)
    060378044861045752240RA 9 T 91 1/8 ODF
    060379040850040849240RA 12 T 77/8 ODF27.6 (97.6)33.2 (117.5)34.9 (124.0)33.2 (118.0)23.0 (81.4)22.7 (80.4)
    060380043959045549240RA 12 T 91 1/8 ODF
    060381042549042548240RA 16 T 91 1/8 ODF37.3 (132.0)55.1 (195.1)58.0 (205.0)55.2 (195.0)38.3 (135.0)37.3 (133.0)
    060382044428044788240RA 16 T 111 3/8 ODF
    060383047761046636240RA 20 T 111 3/8 ODF

    58.8 (208.0)


    86.8 (307.4)


    95.4 (338.0)


    90.8 (321.0)


    65.7 (230.0)


    62.0 (219.0)

    060384047747046637240RA 20 T 131 5/8 ODF
    060385054297046638240RA 20 T 172 1/8 ODF

    1 Add “T” to the end of description for Mounting Stud

    2 Add “M” to the end of the description for Manual Stem

    Capacities based on 100°F liquid and 40°F saturated evaporator per ARI standard 760-87.

    *See Extended Capacity Tables for ratings at a wide range of condition
