KUB200M/ZB15KQ 2HP air conditioning unit for fruit cold room China
small condensing unit suppliers
Product Description
The unit with high-quality cooling accessories can be installed
conveniently, and can operate quietly.
1. Using box-type overall design, compact in structure and
beautiful in appearance;
2. Scientific designs, steady air flow, fully exert the
heat-transfer capacity of the unit;
3.Rational performance design and high EER(energy efficiency ratio)
of the unit;
4.Using external rotor motor, fans good appearance, low noise
operation;
5. Maintenance:The panel is easy to remove.
| Model | Cooling capacity | Refrigrant | Refrigerating room volume |
| KUB200M | 2HP | R22 | 20CBM |

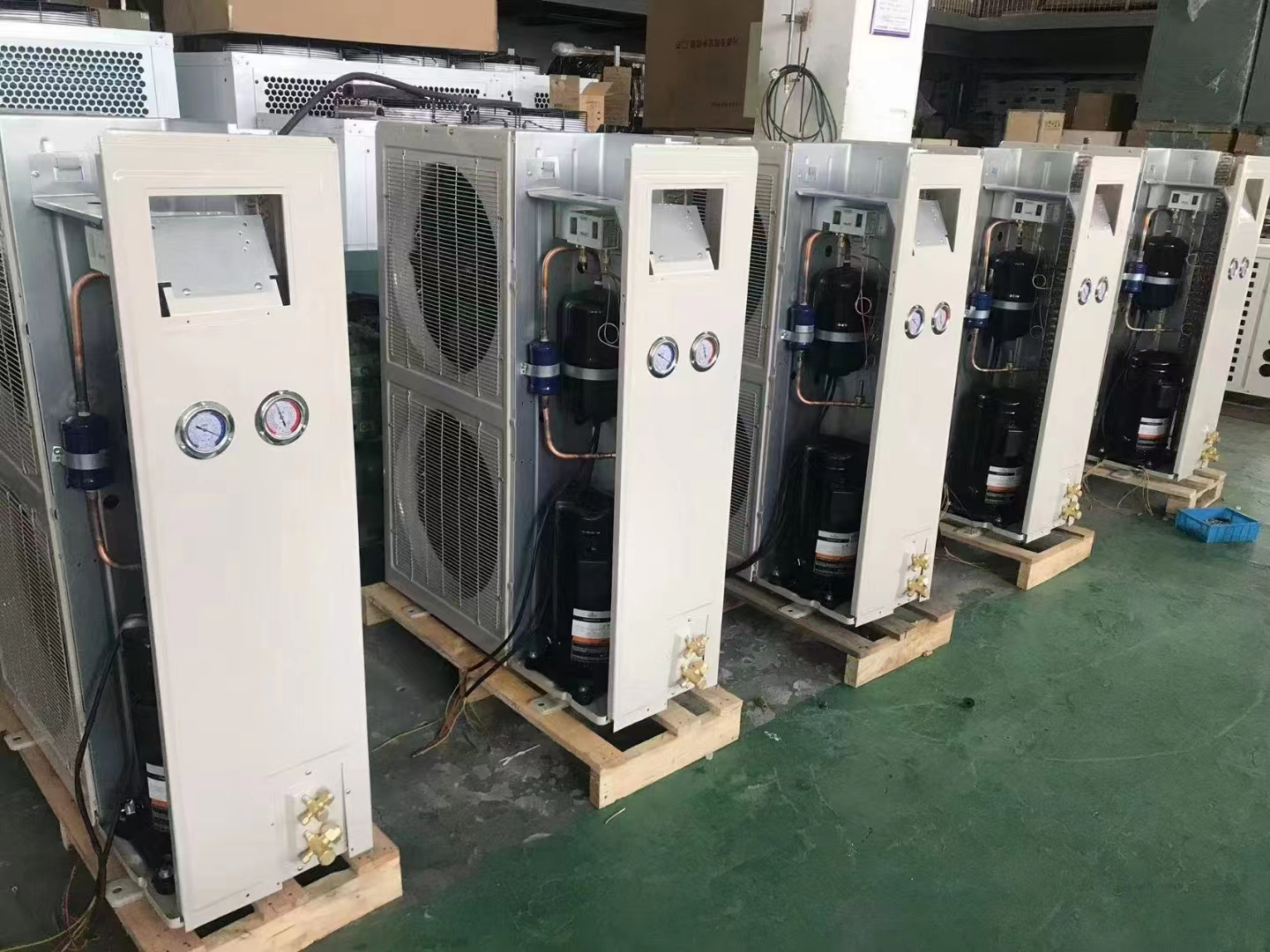

This series of products has the following characteristics:
◆It adopts box-type monolithic structure, compact structure and
beautiful appearance;
◆The main engine adopts Copeland, Sanyo and fully enclosed
refrigerated scroll compressors with low vibration, low noise and
good running reliability;
◆Using copper tube aluminum sheet heat exchanger, high heat
exchange efficiency and long service life;
◆The side fan unit adopts 6-level motor and the fan operates with
low noise;
◆ Built-in junction box, convenient wiring;
◆The inlet and outlet pipe of the unit is equipped with a shut-off
valve, which is convenient for installation and maintenance.
| MODEL | KUB |
| 200L | 300L | 400L | 500L | 600L |
| COMPRESSOR | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE |
Capacity
&
Power
| Evaporation -5℃ | Capacity (W) | 3660 | 5630 | 7680 | 9550 | 11200 |
| Evaporation-7℃ | Capacity (W) | 3630 | 5180 | 7070 | 8790 | 10350 |
| Evaporation-10℃ | Capacity (W) | 2920 | 4570 | 6210 | 7740 | 9120 |
| Evaporation-20℃ | Capacity (W) | | 2930 | 3930 | 4940 | 5850 |
| Evaporation-23℃ | Capacity (W) | | 2540 | 3390 | 4280 | 4080 |
| Evaporation-25℃ | Capacity (W) | | 2300 | 3070 | 3880 | 4610 |
| Suitable for cold storage temperature(℃) | -18℃ |
| Refrigerant | R404A/R507C |
| Power supply | 380V/3P/50HZ |
| Condenser | Fan | 1×￠450 | 1×￠450 | 1×￠450 | 2×￠450 | 2×￠450 |
| Fan voltage(V) | 220 | 220 | 220 | 220 | 220 |
| Fan power(W) | 60 | 60 | 60 | 60×2 | 60×2 |
| Piper size | Suction(mm) | ￠16 | ￠16 | ￠16 | ￠19 | ￠19 |
| Liquid(mm) | ￠10 | ￠10 | ￠10 | ￠12 | ￠12 |
| Dimensions | L(mm) | 1020 | 1020 | 1020 | 1020 | 1020 |
| W(mm) | 420 | 420 | 420 | 420 | 420 |
| H(mm) | 840 | 840 | 840 | 1240 | 1240 |
| Installation size (A×B)(mm) | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 |
condensing units design conditions: evaporation temperature -23 °
C, ambient temperature 35 ° C, suction superheat 10 ° C
According to the needs of market development, the company's fully
enclosed box condensing unit has been changed to the traditional
full-closed condensing unit, which can meet the needs of -5 °C ~ 10
°C, -10 °C ~ -18 °C. Used in hotels, restaurants, food, health,
medicine, agriculture, chemical and other industries.
The working condition of design: evaporating temperature
-7°C,environment temperature 35°C,suction gas superheat 10°C
Main products include: box type & open type condensing units,air cooled,water cooled
condensing units,
mono block split type condensing units, low temperature screw
condensing units,compressor racks, industrial chillers,D-series air
coolers,double side blowing air coolers,water defrosting air
coolers, air cooled condenser,tube-shell water cooled condensers,
tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as
KUB,Carrier,Carlyle , Copeland,Emerson,Maneurop,Tecumseh,danfoss
etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial
processes,medical industries, chemical industries,refrigerated
trucks,vessel industries all other places where cold storage is
needed.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and
excellent location, a sound management system and modern means of
communication and multi-faceted services. We insist on everything
from the actual needs of customers, the implementation of the
entire transport monitoring service is available 24 hours a day.
These are the goods on time, safe, efficient destination to provide
effective protection.
Our Services
A. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture,
food, restaurant, chemical industry; we can undertake designs
according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any
product quality problems, we will return processing, and is
responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced
enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology
to meet all the different needs of our
diverse customers.
