    price for 30HP to 250HP Screw compressor water-cooled chiller

    Ask Lasest Price
    Model Number : LSLG-30WH
    Brand Name : KUB
    Price : US $7700 / Pieces | 10 Piece/Pieces (Min. Order)
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    price for 30HP to 250HP Screw compressor water-cooled chiller

    price for 30HP to 250HP Screw compressor water-cooled chiller

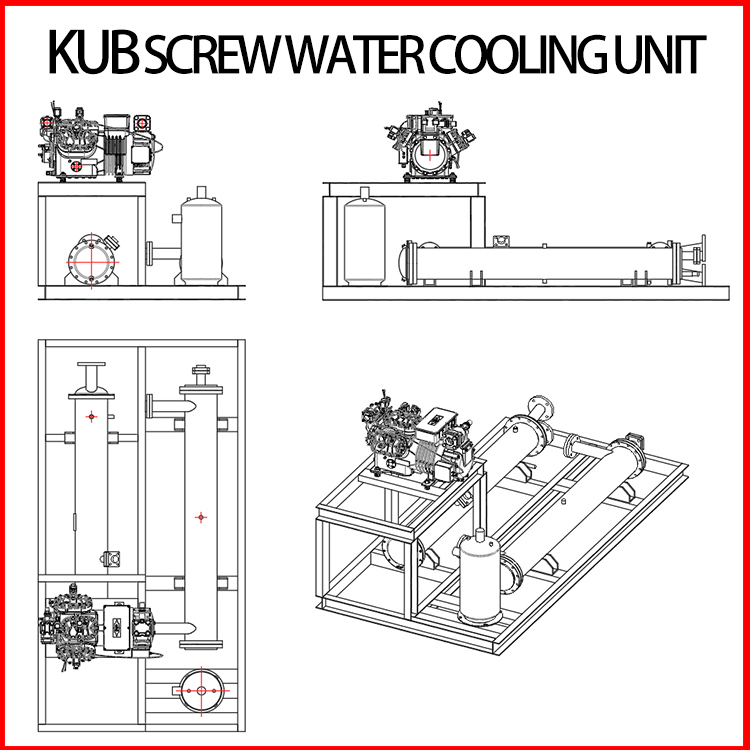

    KUB screw water cooling unit
    The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
    ModelLSLG-
    30WH40WH50WH60WH70WH80WH90WH
    Cooling CapacityKW105140174232267326349
    Power supply3way380V50Hz
    CompressorInput powerKW24.432.140.353.758.570.576.3
    Operating currentA4154689098119128
    Capacity control-0-66-100%(33%is start up)0-50-75-100%(25%is start up)
    Start methodY-Δstart up
    RefrigerantR22
    EvaporatorWater pipe connectionmmDN50FlgDN65FlgDN80FlgDN100Flg
    Water flowm³/h18243040465660
    Water pressure dropkPa37373942424545
    CondensorWater pipe connectionmmDN50FlgDN65FlgDN80FlgDN100Flg
    Water flowm³/h22303749566873
    Water pressure dropkPa38383943444646
    DimensionLmm2400240026002850300030003050
    Wmm900900900900110011001100
    Hmm1350135014501450155016701770
    The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
    ModelLSLG-
    100WH110WH120WH130WH140WH160WH180WH
    Cooling CapacityKW384419488523570663732
    Power supply3P-380V-50Hz
    CompressorInput powerKW83.392.6107.5113.5123141.5157.4
    Operating currentA140156181191207238265
    Capacity control-0-50-75-100%(25%is start up)
    Start methodY-Δstart up
    RefrigerantR22
    EvaporatorWater pipe connectionmmDN100FlgDN125FlgDN150Flg
    Water flowm³/h6672849098114126
    Water pressure dropkPa46484849495255
    CondensorWater pipe connectionmmDN100FlgDN125FlgDN150Flg
    Water flowm³/h8088102109119138153
    Water pressure dropkPa47494951515557
    DimensionLmm3105310531053200320033003300
    Wmm1100110011001100110011001100
    Hmm1770177017701780178017802050
    KUB also provides you with 200WH, 220WH, 250WH and other models of this series of products

    Sta tements
    1. For detailed specification of all types of compressors, please refer to sample data of each compressor brand.
    2. For condensing unit, the components listed are for the standard product, the customer may increase or decrease it
    according to their requirement.
    3. Our company can develop and manufacture all kinds of non -standard equipments on customer’s requirements. For
    detailed specification requirements contact the sales or technical departments.
    4. The company reserves the right of any specification changes in this document without pri or notice; confirm it before putting
    your order.
    5. For more issues, consult our technical department.


    View of our factory:
